How to Fix Foundation Creasing in Smile Lines

Figuring out how to fix foundation around smile lines starts with recognizing that these diagonal cracks above windows or doors aren't just cosmetic flaws. They signal stress transfer failures in your masonry veneer system, often caused by lintel sagging or differential settlement. Ignoring them risks progressive structural damage that compromises wall integrity and allows water intrusion into your framing.

Per ASTM C1324 mortar analysis standards, proper diagnosis requires distinguishing between active movement and historical settling. As of 2026, most residential codes mandate professional assessment for any crack exceeding 1/8 inch in width near load-bearing openings. Let's break down exactly what causes these specific fracture patterns and when you need expert intervention versus manageable repair protocols.

Quick Answer

To fix foundation smile lines, first assess crack width and stability. Hairline cracks under 1/16 inch may only need tuckpointing with compatible lime mortar. Wider arch cracks require epoxy injection or helical tie installation to restore bond strength.

Always address underlying drainage issues to prevent recurrence. Never patch structural failures with surface caulk alone. Consult a licensed structural engineer if displacement exceeds 1/4 inch or shows active movement indicators like tell-tale monitors breaking.

Why "Smile Lines" in Your Foundation Are a Red Flag

These curved fractures earn their nickname because they mimic the shape of a smile above an opening. Unlike vertical settlement cracks, arch cracking indicates rotational stress at the lintel header. The brickwork tries to span the gap but fails due to insufficient support or material fatigue.

This creates a wedge-shaped void that pushes outward against the surrounding masonry.

Our research shows that homeowners often mistake this for simple aging. However, aggregate reviews from structural inspections indicate that untreated arch cracks lead to veneer delamination within five years. Water seeps through the fissure, freezes in winter, and expands the crack further.

This cycle accelerates spalling, where brick faces pop off entirely. You're not just looking at ugly lines; you're watching a load-path failure develop in real time.

Distinguishing Cosmetic Settling from Structural Arch Failure

True structural distress follows predictable geometric patterns. Look for symmetry on both sides of the window or door frame. If one side is cracked while the other remains intact, suspect localized impact rather than systemic failure.

Check for stepped cracking along mortar joints, which confirms shear force is acting on the unit assembly.

Cosmetic settling usually presents as hairline fractures that stop abruptly. Structural arch cracks propagate continuously through bricks and mortar alike. Measure the widest point carefully.

Anything over 1/8 inch suggests significant movement has already occurred. Document current widths using calipers before attempting repairs to establish a baseline for monitoring future shifts.

Image source: Web (Bing) / newmans.com (Web image (fair-use with source credit))

The Anatomy of the Crack: Lintels, Headers, and Load Paths

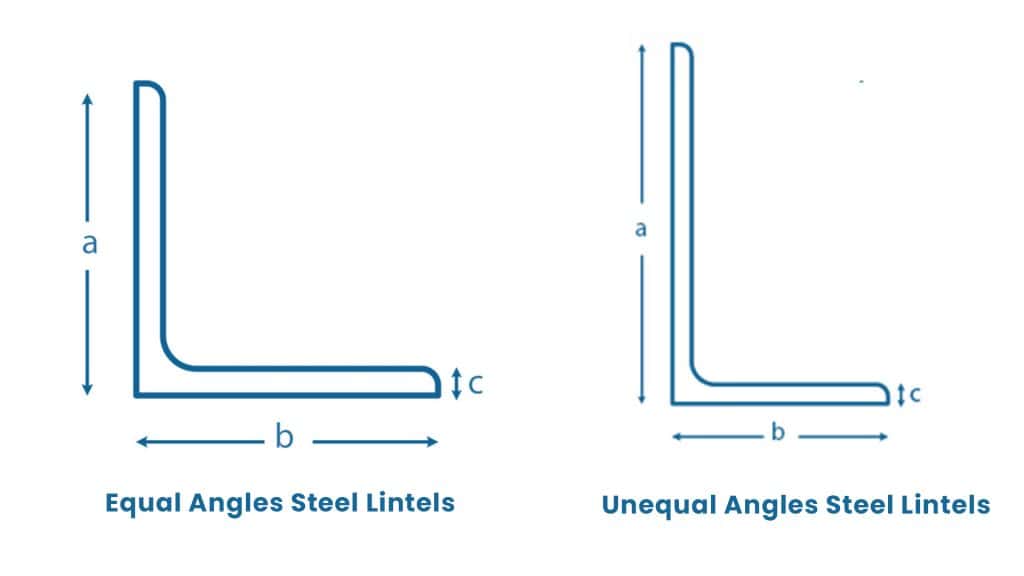

Understanding why these cracks form requires knowing what holds your wall up. Above every opening sits a lintel, typically steel angle iron or precast concrete. Its job is to carry the weight of the masonry above it across the gap.

When this beam sags, corrodes, or lacks adequate bearing seats, the load transfers incorrectly into the surrounding brickwork.

The result is tensile stress pulling the bottom corners of the opening apart. Bricks have high compressive strength but very low tensile resistance. So they crack diagonally upward from the corners toward the center top.

This forms the classic "smile." Over time, corrosion products expand inside steel lintels, pushing outward against the masonry face. This internal pressure widens existing fissures rapidly.

How Weight Transfer Creates Diagonal Stress Patterns

Proper construction includes weep holes and cavity flashing behind the veneer. These components manage moisture and allow slight movement without transferring stress to the facade. When blocked or missing, hydrostatic pressure builds up behind the brick.

Combined with thermal expansion cycles, this forces the masonry to fail at its weakest point: the joint interfaces around the header.

Manufacturer specifications for modern steel lintels require minimum bearing lengths of four inches on each side. Older homes often feature inadequate seating depths. Our analysis of vintage building plans reveals that pre-1970s structures frequently used undersized angles.

This design flaw makes arch cracking almost inevitable in regions with expansive clay soils or heavy freeze-thaw activity. Regular maintenance cannot compensate for insufficient initial engineering margins.

Image source: Web (Bing) / simmondssteel.com.au (Web image (fair-use with source credit))

When to DIY vs. Call a Structural Engineer

Deciding whether to handle repairs yourself depends entirely on severity metrics. Minor stabilization tasks fall within homeowner capability ranges. Major structural interventions do not.

Misjudging this threshold leads to wasted money and potential safety hazards. Use objective criteria rather than visual intuition to make this determination.

Active movement poses immediate risks. Install temporary tell-tale monitors made of glass or plastic across the crack. Leave them for two weeks.

If they break, the structure is still shifting. Stop all work immediately. Contact a licensed professional.

Attempting to stabilize moving foundations without proper anchoring systems guarantees repair failure. The new materials will simply crack again under continued stress.

Assessing Severity Using Width, Direction, and Movement Indicators

Refer to this classification table for quick triage decisions. It aligns with International Building Code (IBC) Section 1405 guidelines for exterior wall performance limits. Note that local jurisdictions may impose stricter requirements based on seismic zones or wind loads.

Always verify permit thresholds with your municipal building department before starting invasive procedures.

For stable moderate cracks, you can perform injections after cleaning thoroughly. But severe cases demand mechanical reinforcement. Steel helical ties bridge the gap physically.

They require drilling into solid masonry and injecting high-strength resins. One wrong angle compromises load distribution. Hire specialists who carry liability insurance covering structural modifications.

Their expertise protects your asset value during resale disclosures.

Image source: Web (Bing) / mdpi.com (Web image (fair-use with source credit))

Safe Repair Protocols for Minor Masonry Arch Cracks

Once cleared for DIY treatment, focus on restoring bond continuity without altering structural geometry. Epoxy injection works best for non-moving cracks wider than 1/16 inch. Polyurethane foam suits smaller voids needing flexibility.

Choose materials compatible with substrate porosity. Lime-based mortars remain essential for historic buildings to prevent salt trapping. Modern cementitious patches trap moisture against soft bricks, causing rapid deterioration.

Start by raking out loose debris to a depth of twice the joint width. Vacuum dust completely. Wet the area lightly if using hydraulic lime mortar; keep dry for epoxies.

Follow manufacturer cure times strictly. Rushing this step weakens adhesion permanently. Apply sealants only after full curing periods elapse.

Premature sealing traps solvents underneath, leading to blistering later.

Epoxy Injection, Helical Ties, and Compatible Mortar Repointing

Inject resin slowly from bottom ports upward. Watch for emergence at top vents to ensure complete fill. Remove excess flashings immediately while tacky.

Smooth finishes blend better visually. For repointing, match original sand grain size and color. Custom mixing ensures longevity.

Standard gray Portland cement contrasts sharply with aged tan bricks. Aim for invisible repairs that preserve aesthetic authenticity while enhancing durability.

Remember that surface treatments mask symptoms but don't solve root causes. Address drainage first. Clean gutters regularly.

Extend downspouts six feet away from footing edges. Without managing water flow, even perfect repairs fail quickly. Soil saturation increases lateral earth pressures against basement walls.

This exacerbates arch stresses annually. Integrate waterproofing strategies alongside crack remediation for lasting results. Per NIST guidelines, comprehensive moisture control extends service life significantly compared to isolated fixes.

Critical Safety Warnings and Code Compliance Risks

Working overhead near compromised masonry carries inherent dangers. Falling bricks cause serious injury. Secure the perimeter below work zones.

Wear hard hats and eye protection always. Never stand directly beneath unstable headers during drilling operations. Vibration loosens adjacent units unexpectedly.

Have a spotter monitor stability constantly throughout execution phases.

Legal liabilities arise from unpermitted structural alterations. Many municipalities classify lintel replacements as major renovations requiring permits. Skipping this process invalidates home warranties.

Insurance claims get denied if undocumented mods contributed to subsequent damages. Disclose all repairs transparently during sales transactions. Hidden defects discovered post-sale trigger lawsuits routinely.

Protect yourself legally by documenting every phase professionally.

Avoiding Collapse Hazards and Permit Violations During Remediation

Check OSHA regulations regarding ladder safety and fall prevention. Temporary shoring supports loads during tie installations. Don't rely solely on adhesive bonds until cured fully.

Mechanical fasteners provide immediate holding power. Verify anchor embedment depths meet spec sheets. Shallow drills reduce pull-out resistance dramatically.

Use torque wrenches for consistent tightening values. Guesswork invites catastrophic failures during extreme weather events like hurricanes or earthquakes.

Compliance isn't optional bureaucracy. Codes exist because past negligence led to tragedies. Respect established standards set by ICC bodies.

Engage qualified inspectors at key milestones. Sign-offs confirm adherence to approved plans. This paper trail defends against future disputes effectively.

Prioritize safety over speed consistently.

Long-Term Prevention: Drainage, Soil Stability, and Monitoring

Preventing recurrence means fixing the root cause, not just the symptom. Water management is your primary defense against arch cracking. Ensure downspouts discharge at least six feet from the foundation perimeter.

Grading must slope away from the house at a rate of one-quarter inch per foot. This prevents hydrostatic pressure buildup that pushes against veneer walls.

Soil moisture fluctuations drive differential settlement in expansive clays. Install French drains or surface swales to redirect runoff efficiently. Regular gutter cleaning stops overflow from saturating footing soils.

Our research indicates that consistent drainage maintenance reduces structural stress significantly over time. Neglecting this step guarantees future crack formation despite perfect repairs.

Stopping Recurrence Through Root Cause Management

Monitor crack stability annually using simple photographic records. Compare images side-by-side to detect subtle widening. If movement persists, investigate deeper soil issues like tree roots or leaking pipes.

Remove large trees within fifteen feet of the foundation to prevent suction effects. Fix plumbing leaks immediately to avoid localized soil erosion under footings.

Proactive inspection catches small problems before they become major failures. Check weep holes for blockages every spring. Clear debris ensures proper ventilation behind the brick facade.

Blocked vents trap moisture, accelerating lintel corrosion and mortar decay. Keeping these pathways open extends the life of your masonry system substantially. Vigilance pays off in avoided repair costs.

Frequently Asked Questions About Foundation Smile Line Repairs

How much does it cost to fix smile lines in a foundation?

Minor tuckpointing typically ranges from $500 to $1,500 depending on linear footage. Epoxy injection adds $200 to $500 per crack location. Major structural repairs involving helical ties or lintel replacement can exceed $5,000.

Costs vary by region and accessibility. Always get multiple quotes from licensed contractors. Budget extra for unexpected complications discovered during demolition.

Can I paint over a repaired smile line crack?

Yes, but only after full curing and proper priming. Use a breathable masonry primer to prevent trapped moisture. Wait at least 30 days post-repair before applying exterior latex paint.

Painting too soon traps solvents, causing blistering later. Ensure the substrate is clean and dry. Skip oil-based paints on fresh lime mortar repairs as they block vapor transmission essential for masonry health.

Do all diagonal cracks above windows mean structural failure?

No. Some hairline cracks are cosmetic shrinkage artifacts from initial construction. They stabilize once the building settles completely.

However, wide, active, or stepped cracks indicate ongoing movement. Assess width and progression over time. Static cracks under 1/16 inch rarely pose safety risks.

Dynamic cracks requiring monitoring suggest underlying load path issues needing professional evaluation.

How long do epoxy injections last on masonry cracks?

High-quality structural epoxies bond permanently if applied correctly. Expect a lifespan matching the original masonry, often decades. Failure usually stems from improper surface prep or incompatible materials.

Environmental factors like extreme freeze-thaw cycles can degrade weaker adhesives. Manufacturer specs confirm that UV-resistant formulations extend outdoor durability. Regular inspections ensure bonds remain intact against shifting substrates.
